In stock
$1,449.00
SKU: CHA-AC35
***For Replacement Parts, contact us***
Description

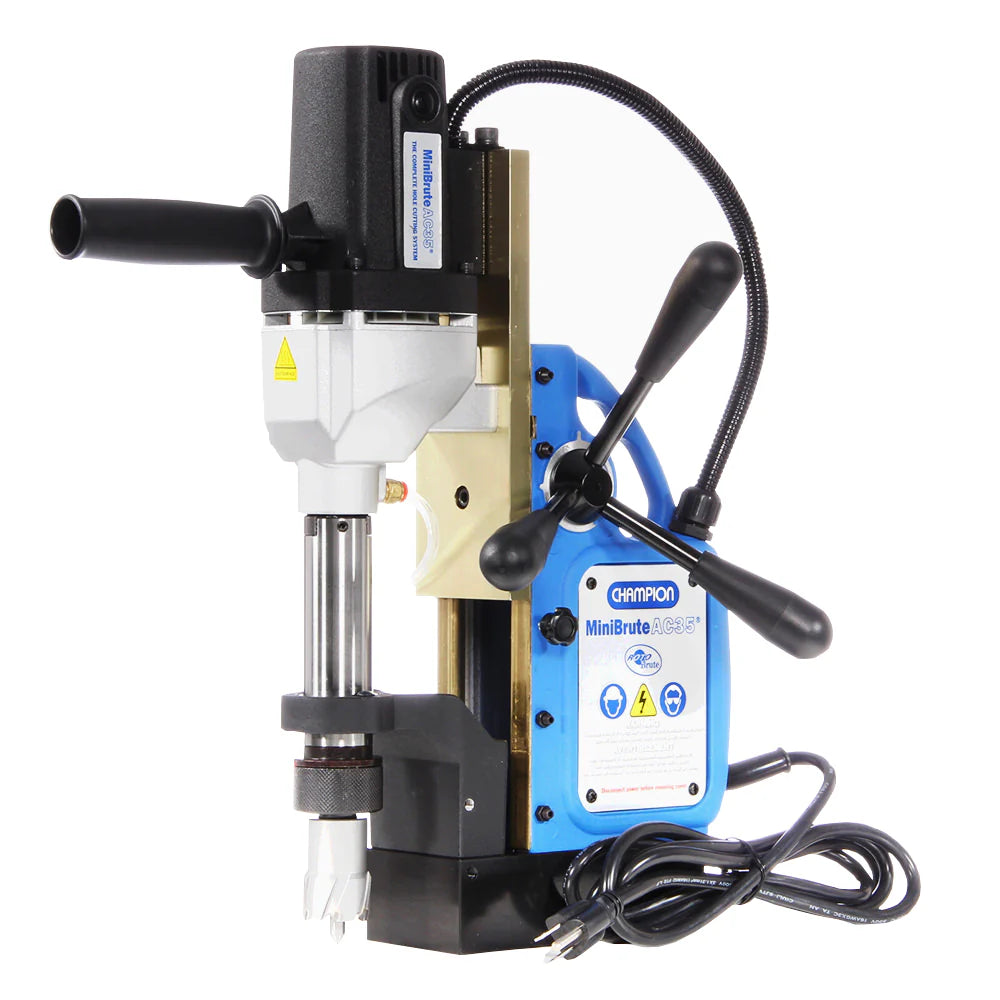

Champion AC35 MiniBrute Magnetic Drill Press – 1-3/8″ x 2″ Capacity
The Champion RotoBrute AC35 MiniBrute magnetic drill press packs a high-torque motor into a lightweight frame for fast, accurate holemaking on structural steel and plate. With a 1-3/8″ diameter x 2″ depth capacity, 2,200 lb magnetic holding force, and 600 RPM speed, it delivers clean cuts and reliable productivity on the jobsite or in the fab shop.
Materials & Applications
- Carbon steel
- Structural steel
- Mild steel plate
- Cast steel, Stainless (with appropriate cutters)
- Beam and plate holemaking
- Field fabrication
- Maintenance and repair (MRO)
- Bridge and infrastructure work
- Equipment and truck frame drilling
Key Features
- Cutting capacity: 1-3/8″ diameter, 2″ depth (annular cutters)
- Lightweight: only 23 lb for easy handling and overhead or tight-space work
- Magnetic strength: 2,200 lb for stable drilling on ferrous surfaces
- Motor / speed: high-torque 1100–1200 W class, 600 RPM for efficient cutter performance
- Quick-Change arbor: fast, secure swaps of 3/4″ Weldon-shank annular cutters
- Twist-drill capable: accepts 3/4″ Weldon annular cutters and converts to twist drilling with the QX1220 chuck adapter (sold separately)

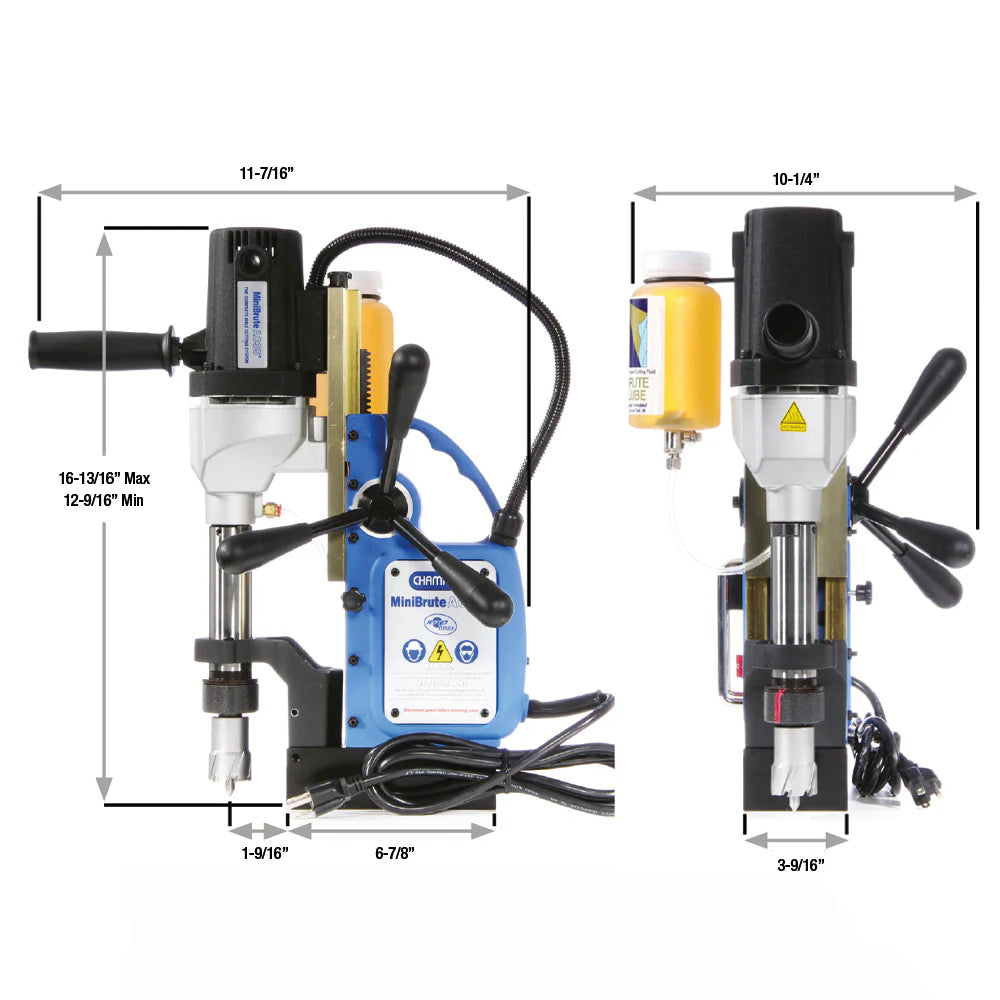

Specs
- Max cutter diameter: 1-3/8″ (35 mm)
- Max depth of cut: 2″ (50 mm)
- No-load speed: 600 RPM
- Magnetic holding force: 2,200 lb
- Weight: 23 lb
- Shank: 3/4″ Weldon for annular cutters
- Adapter: QX1220 drill chuck adapter available separately
