In stock
$2,149.00
SKU: CHA-RB30
***For Replacement Parts, contact us***
Description
Materials & Applications
- Steel structural sections (I-beams, H-beams), plates, angles
- Truck frames, trailer frames, wheel arches, undercarriage areas
- Annular cutter drilling up to 1-3/8″ diameter
- Low-clearance zones, tight fit areas, confined job-site spaces
- Maintenance, MRO, fabrication, welding prep work
- Steel, stainless steel, cast iron, heavy alloys in structural or mobile equipment contexts
Key Advantages

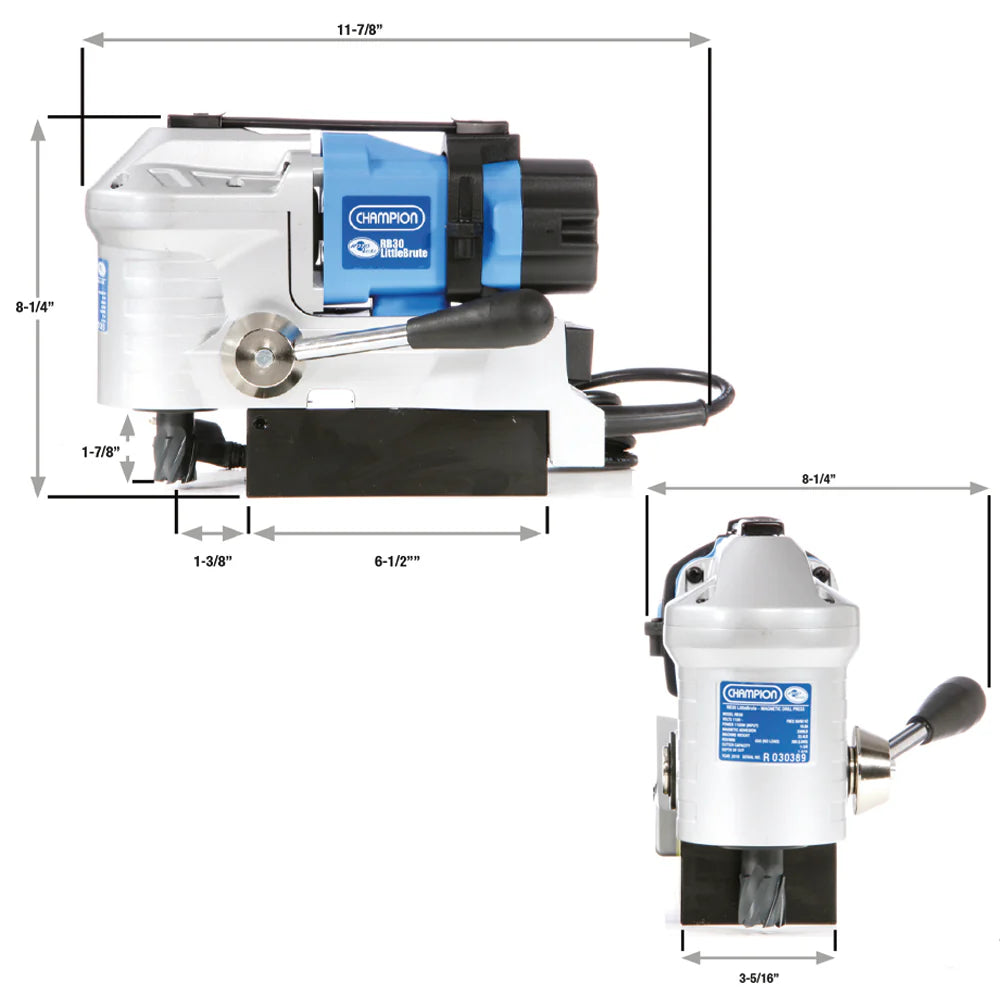

- Low-clearance design (≈ 7-3/4″ tall) to work inside beams, wheel wells, and tight cavities
- Serious capacity for its size: annular cutters up to 1-3/8″ dia × 1-3/16″ depth
- Strong base: 3300 lb magnet for stable, chatter-free cuts on vertical or overhead work
- Controlled performance: 1100 W motor at ~650 RPM for demanding materials
- Portable productivity: ~23–25 lb for faster setup and repositioning on site
- Operator focused: integrated work light, quick-change accessories, safety strap
Technical Specifications
- Annular Cutter Capacity 1-3/8″ (35 mm) dia × 1-3/16″ (30 mm) depth
- Motor Power 1100 W
- No-Load Speed ~650 RPM
- Magnetic Holding Force 3300 lb
- Weight ≈ ≈ 23–25 lb (10.4–11.3 kg)
- Use Cases Structural steel, truck/trailer frames, bridgework, shop/MRO in tight spaces
